Flat + Tufting Embroidery Machine
Champion Family
Bangladesh Exclusive
Sole Agent
B2, Level: 3, Plot: 32 Road: 01 (Jasimuddin Avenue) Sector: 03, Uttara, Dhaka, Bangladesh 1230 Dhaka, Bangladesh
Machine Specification
9 Color
Needles
330mm
Head interval
1500
Maximum speed
4.02 kw
Power consumption
Dahao X-98 Control System
Control System
330*660*800mm
Embroidery Area
Other Specification
| Tension Base | Intelligent thread break detect | Main Shaft Motor | 3.1-3.7 KW Servo Motor x 1pc |
| Upper Thread Holding Device | Automatic keep locked thread device | Embroidery Speed: 1500 (1350 and 1500 rpm optional) | 250-1500RPM |
| Auto Lubrication | Yes | X/Y Motor | 1.5KW Servo Motor X1pcs, Y1pcs |
| Memory | 200,0000 stitches, 200pcs design | Input Mode | U DISK & wifi |
| Power consumption | 1.5KW-5KW | Design Format | Wilcom & Dahao Supported |
| Head Structure | Double crank, Double Cam double lever, pressure foot and needle bar drive independently | Head Lock System | Solenoid jump or Motor jump |
| Machine Color | Silver | Embroidery trimming | Auto Trimming |
| Color Change | Screw rod automatic color System | Combination Embroidery Function | Customized |
Certificate
highlights
Mechine
Description
Dual-Function Embroidery with 3D Texture
Customized to 1-300 Head

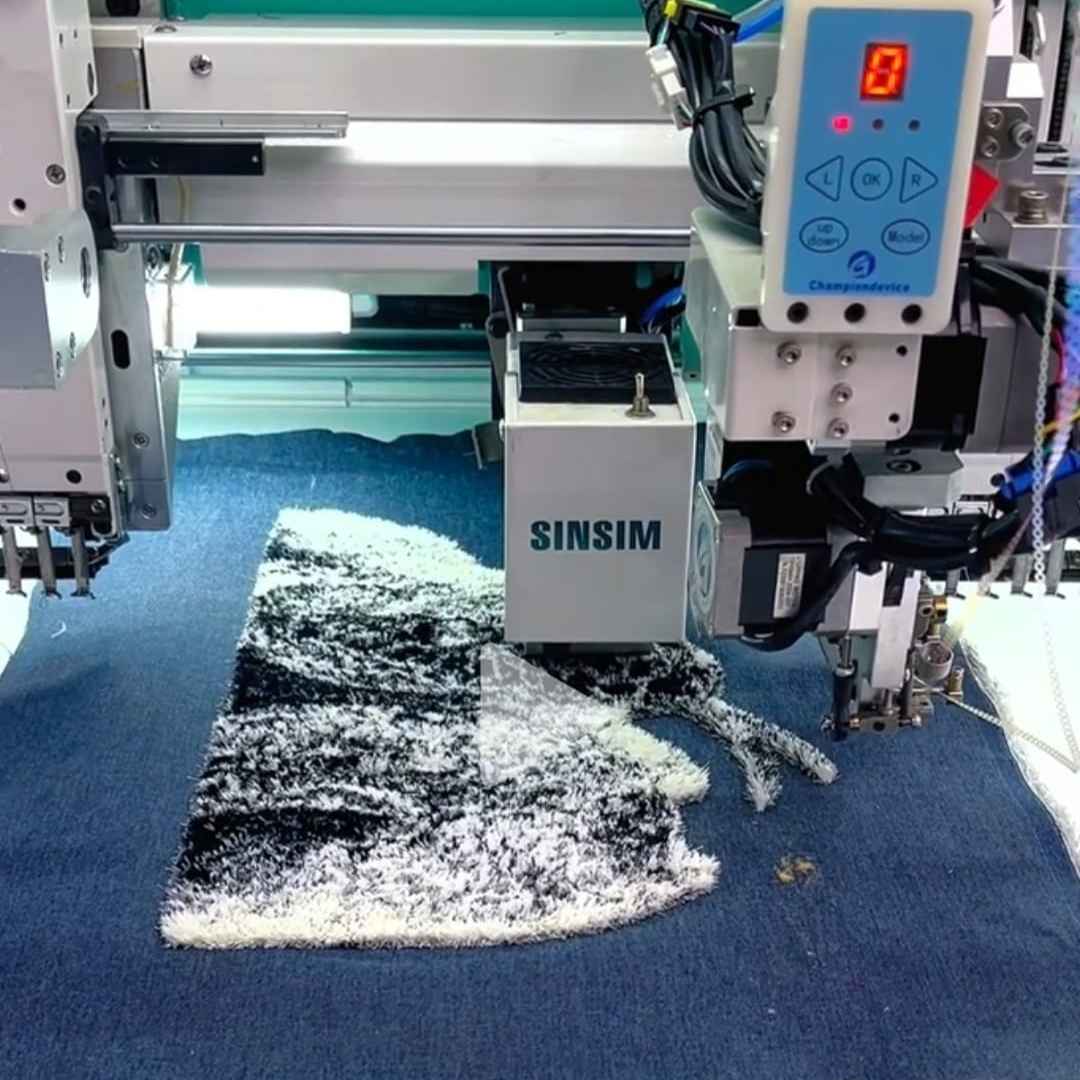

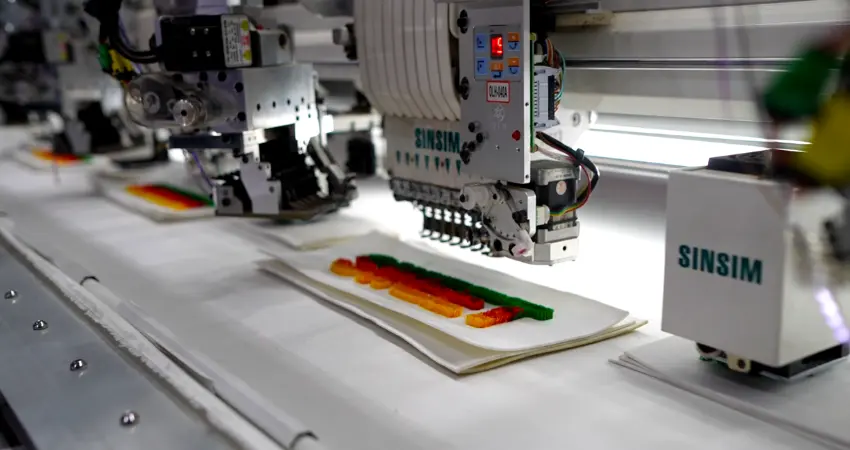

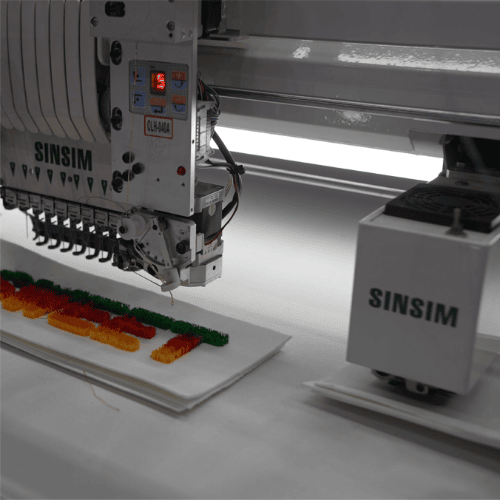

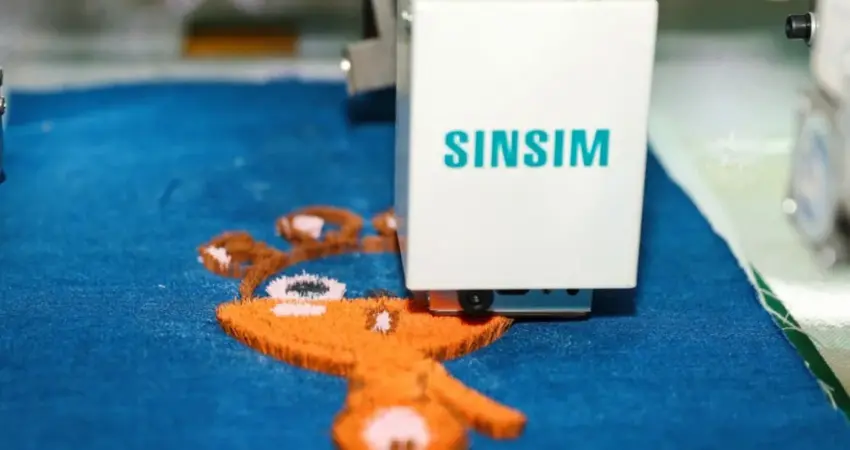

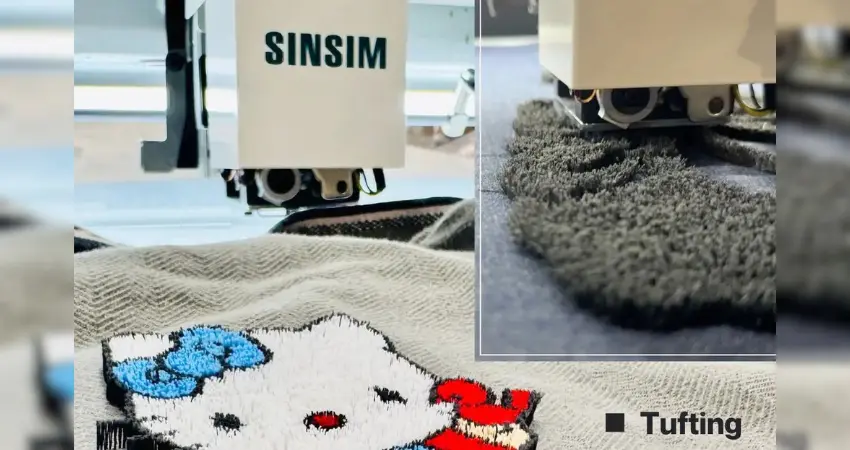

The Sinsim Flat Plus Tufting Embroidery Machine blends traditional flat embroidery and three-dimensional tufting in a single, advanced system. Engineered for versatility, this machine effortlessly switches between detailed flat stitching—ideal for logos, monograms, and intricate designs—and tufted embroidery, which creates plush, raised patterns for a luxurious, textured look.
With robust industrial components, a touchscreen control panel, and automated color change, detection, and trimming features, this machine is designed for productivity and precision in both creative studios and high-output factories. Its large embroidery area supports multi-piece runs and oversized textile projects, while servo-powered drives ensure smooth, stable stitching even at high speeds. Designers and manufacturers can control tuft height and density for customized effects, producing standout apparel, decorative home textiles, promotional items, and premium upholstery.
Mechine
features
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
