Sinsim Super High Speed Flat Embroidery Machine
Champion Family
Bangladesh Exclusive
Sole Agent
B2, Level: 3, Plot: 32 Road: 01 (Jasimuddin Avenue) Sector: 03, Uttara, Dhaka, Bangladesh 1230 Dhaka, Bangladesh
Machine Specification
9 Color
Needles
330mm
Head interval
1500
Maximum speed
4.02 kw
Power consumption
Dahao X-98 Control System
Control System
330*660*800mm
Embroidery Area
Other Specification
| Tension Base | Intelligent thread break detect | Main Shaft Motor | 3.1-3.7 KW Servo Motor x 1pc |
| Upper Thread Holding Device | Automatic keep locked thread device | Embroidery Speed: 1500 (1350 and 1500 rpm optional) | 250-1500RPM |
| Auto Lubrication | Yes | X/Y Motor | 1.5KW Servo Motor X1pcs, Y1pcs |
| Memory | 200,0000 stitches, 200pcs design | Input Mode | U DISK & wifi |
| Power consumption | 1.5KW-5KW | Design Format | Wilcom & Dahao Supported |
| Head Structure | Double crank, Double Cam double lever, pressure foot and needle bar drive independently | Head Lock System | Solenoid jump or Motor jump |
| Machine Color | Silver | Embroidery trimming | Auto Trimming |
| Color Change | Screw rod automatic color System | Combination Embroidery Function | Customized |
Certificate
highlights
Mechine
Description
Model: 920(Nine Color Twenty Head) Flat Machine
Ready Stock

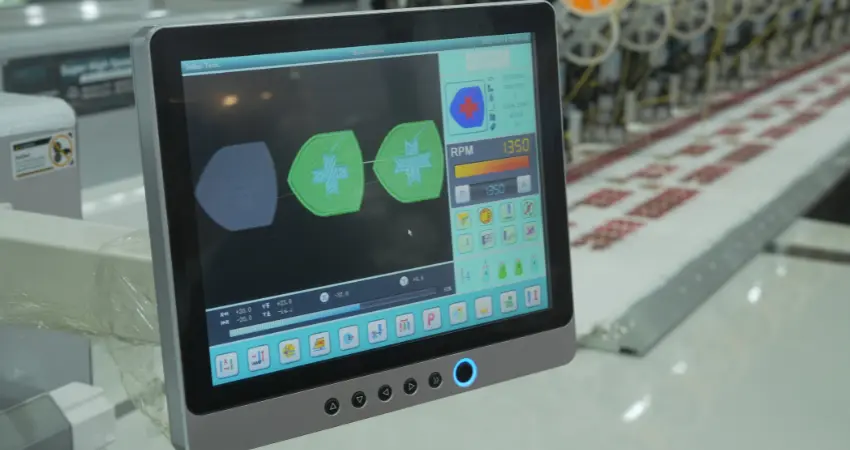

The Sinsim Embroidery Machine is a super high-speed powerhouse running at 1500 RPM with 9-color needles. It features the latest Dahao X98 control panel for easy operation and produces over 750,000 stitches per shift. With a 33 cm head-to-head distance, auto lubrication, auto thread cutting, and powerful servo motors (3.1-3.7 KW main shaft, 1.5 KW auxiliary, plus Y-axis motor), this machine is built for maximum productivity and reliability.
This exceptional combination of speed, advanced features, and rugged reliability is exactly why Bangladesh’s top export-oriented apparel manufacturers and leading local embroidery houses trust Sinsim machines for their production needs. Whether fulfilling large export orders or dominating the local market, industry giants across the country are using our Sinsim Embroidery Machine to ensure seamless, uninterrupted, and high-quality output—day after day.
Mechine
features
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
