Flat Embroidery Machine
Champion Family
Bangladesh Exclusive
Sole Agent
B2, Level: 3, Plot: 32 Road: 01 (Jasimuddin Avenue) Sector: 03, Uttara, Dhaka, Bangladesh 1230 Dhaka, Bangladesh
Machine Specification
9/12/15 Color customize
Needles
330mm
Head interval
1500
Maximum speed
4.02 kw
Power consumption
Dahao X-98 Control System
Control System
customize
Embroidery Area
Other Specification
| Tension Base | Intelligent thread break detect | Combination Embroidery Function | Customized |
| Upper Thread Holding Device | Automatic keep locked thread device | Embroidery Speed: 1500 (1350 and 1500 rpm optional) | 250-1500RPM |
| Auto Lubrication | Yes | X/Y Motor | 1.5KW Servo Motor X1pcs, Y1pcs |
| Memory | 200,0000 stitches, 200pcs design | Input Mode | U DISK & wifi |
| Power consumption | 1.5KW-5KW | Design Format | Wilcom & Dahao Supported |
| Head Structure | Double crank, Double Cam double lever, pressure foot and needle bar drive independently | Head Lock System | Solenoid jump or Motor jump |
| Machine Color | Silver | Embroidery trimming | Auto Trimming |
| Color Change | Screw rod automatic color System | Main Shaft Motor | 3.1-3.7 KW Servo Motor x 1pc |
Certificate
highlights
Mechine
Description

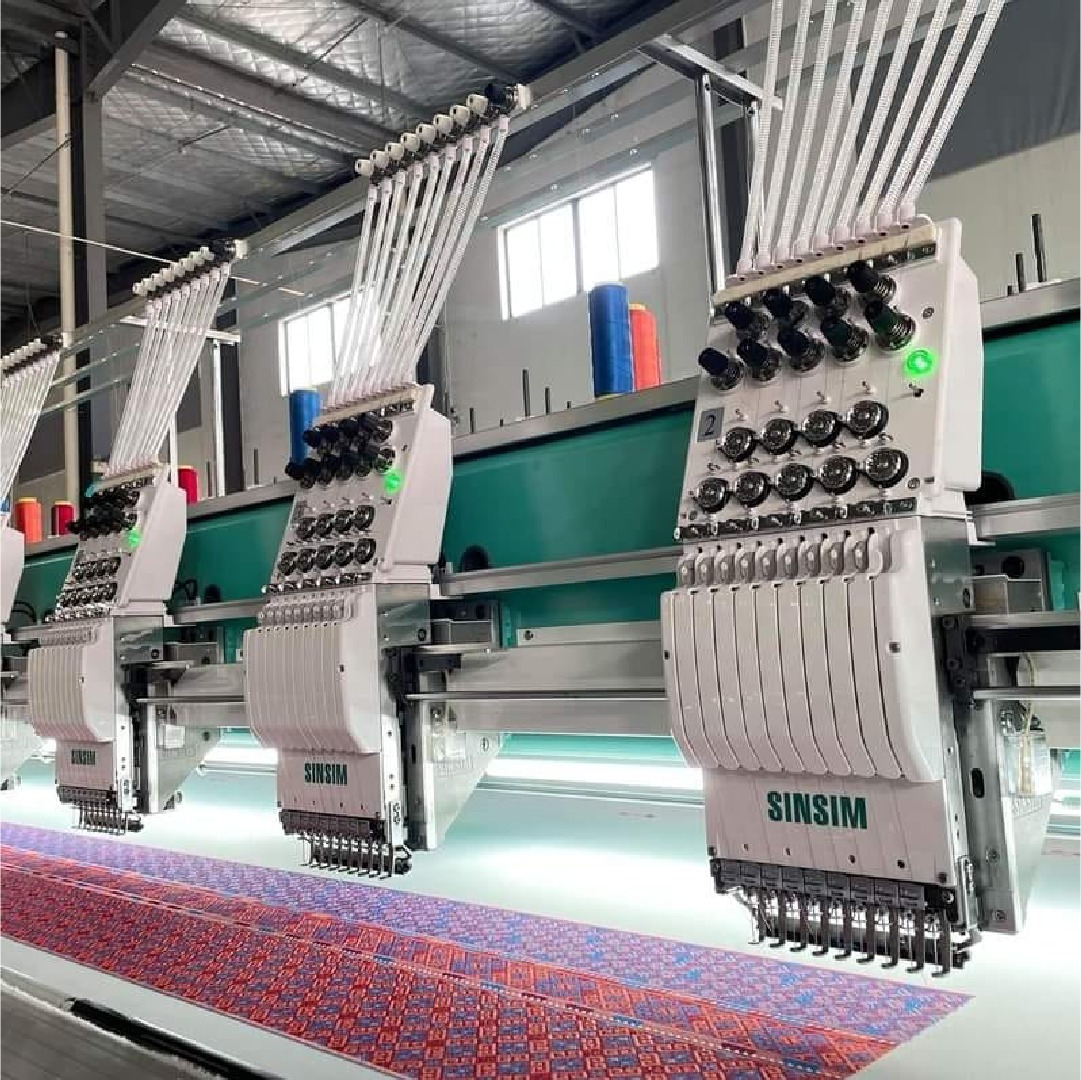

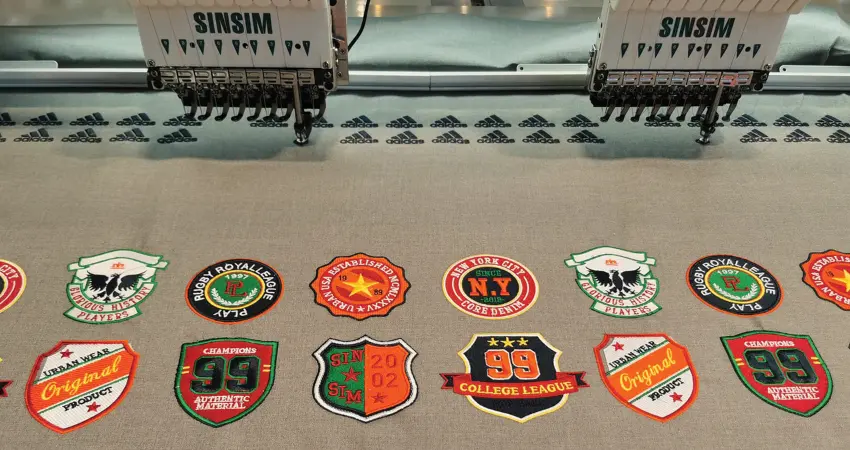

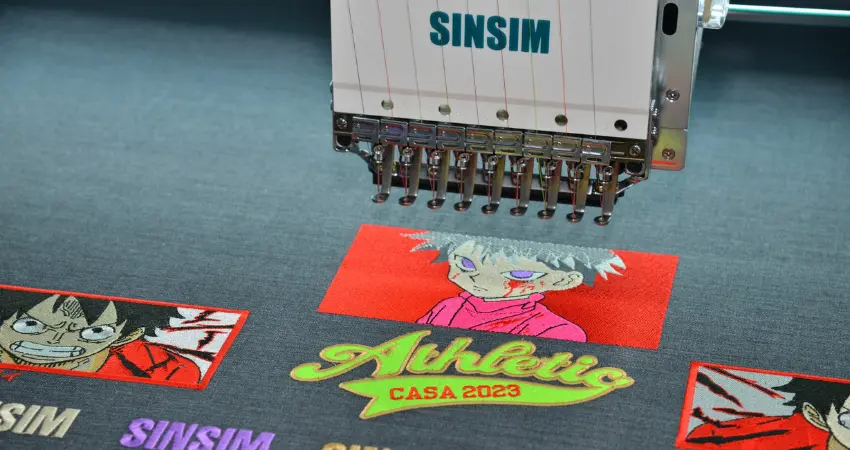

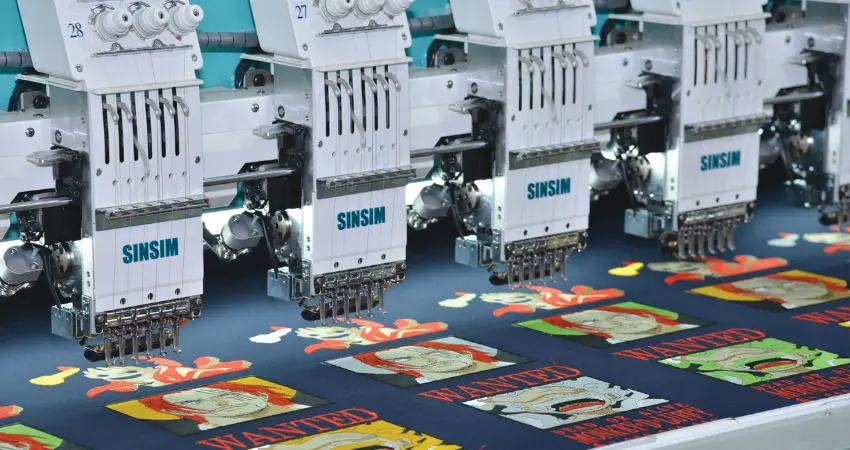

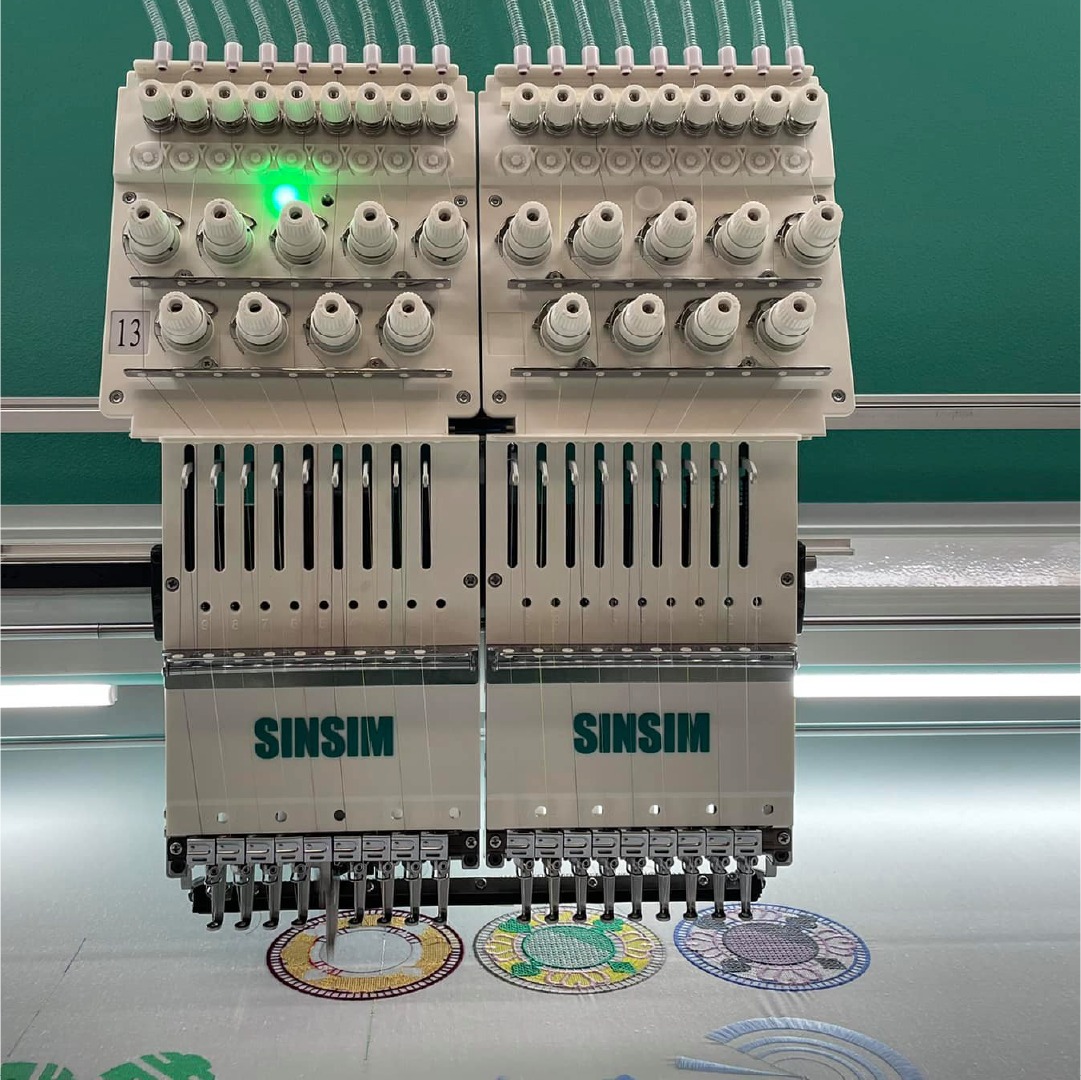

Super High Speed Flat Embroidery Machine
1-300 Head Customizable
The SINSIM flat embroidery machine is designed for professional and large-scale textile production, combining high-speed performance with exceptional precision and material versatility. Engineered with a robust frame and advanced stabilization technology, it consistently delivers intricate, high-quality stitching on a variety of fabrics including cotton, knits, polyester, leather, hemp, and woven textiles.
Automation is at the heart of the SINSIM flat embroidery machine, with automated thread trimming, color changes, thread-break detection, and comprehensive lubrication—all designed to reduce manual work and keep productivity high. Its generous memory capacity allows storage of up to hundreds of designs or 100 million stitches, with seamless file import/export via USB or network connectivity for compatibility with major embroidery formats.Durable, adaptable, and intuitive, the SINSIM flat embroidery machine empowers garment manufacturers, home textile producers, and creative professionals to achieve premium, detailed embroidered products with speed and reliability in every production run.
Mechine
features
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
Core Functionality
- Multi-needle embroidery capability
- Automatic thread trimming
- Adjustable stitch density and length
- High-speed stitching
